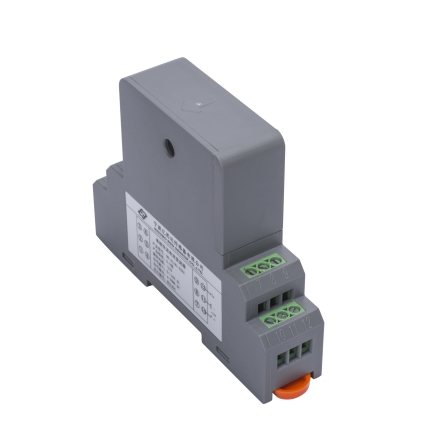

Single Phase DC Current TransducerNB-DI1B0-□□ED
DI1B0-□□ED is a DC Current Transducer that detects DC current in a wire, and generates a signal proportional to that current. The generated signal could be analog voltage(0-5V dc,0-10V dc) or current( 0-20mA,4-20mA) output. The generated signal can be then used to display the measured current in an ammeter, or can be stored for further analysis in a data acquisition system, or can be used for the purpose of control.
Specifications:
v Accuracy：Class 1.0
v Power Supply：+12V、+15V、+24V（Optional）
v Input Range：DC 20mA～5A（Customizeable）
v Output：0-5V、0-10V、0-20mA、4-20mA（Optional）
v Operating Temperture：-10℃～+60℃
v Load Capacity：Voltage output ≥2KΩ；Current output ≤250Ω
v Static Power Consumption：≤0.3W
v Rated Power Consumption：≤0.7W
v Load of Isolation Voltage：DC 2500V
v Response Time：≤200ms
v Thermal Drift：≤500PPm/℃
v Lightning Surge Immunity:Powersupply end 2000V,Input end 10000A,Output end 500V
v Case Style：E
v Case Material：ABS (flame retardant)
v Mounting：35mm DIN rail or screw

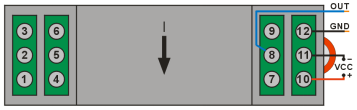

Wiring Diagram:
Current Hole-thru Input: Terminals 8 and 12 are for output；Terminals 10 and 11 arefor Auxi.power supply;
Instructions:
v Ensure correct wiring the terminals to avoid possible damage to the device; The mounting gap between two devices should be not less than 5mm. |
v In magnetic fields, the power lines should be in good conditions, and shielding should be taken against the magnetic interference to the device. |
v Proper measures should be taken against the lighting if exposed into the outdoor environment, though this device has lightning protection ability. |
v Do not take the device apart. |
v Please keep the device cool and dry ,and store it away from humidity or high temperature over 60℃ . |
