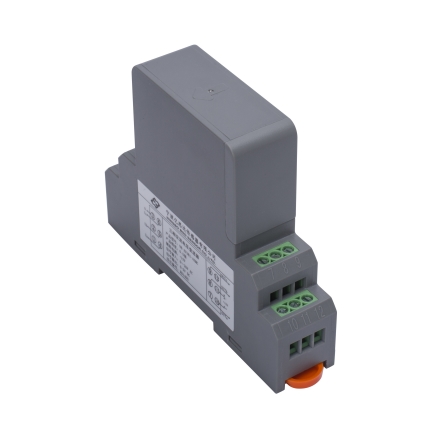

Single Phase DC Current Transducer NB-DI1B0-□□MB
DI1B0-□□MB is a device that measure the DC Current in a wire, and then generates the signals that are proportional to that current. The generated signal could be 0-5V, 0-10, 0-20mA, or 4-20m; The generated signal can be then used to display the measured current in an ammeter, or can be stored for further analysis in a data acquisition system, or can be used for the purpose of control.
Specifications:
v Accuracy：Class 0.2
v Power supply：+12Vdc、 +15Vdc、 +24Vdc、220Vac（Optional）
v Input Range：DC 0～5A（Customizeable）
v Output：0-5V、0-10V、1-5V、0-20mA、4-20mA（Customizeable）
v Operating temperature：-10℃～+60℃
v Load Capacity：Voltage output ≥2KΩ；Current output ≤250Ω
v Static power consumption：≤0.5W
v Rated power consumption：≤1.5W
v Load of Isolation Voltage：DC 2500V
v Response time：≤100ms
v Thermal drift：≤200PPm/℃
v Lightning surge Immunity:Power-supply end 2000V，Input end 2000V,Output end 500V
v Case Style：M
v Case Material：ABS (Flame retardant)
v Mounting：35mm DIN rail or screw.
Wiring Diagram
Current Input Thru Terminals: Terminals 1 and 3 are for input；Terminals 8 and 12 are for output；Terminals 10 and 11are for power supply. Terminals 2、4、5、6、7 and 9 are NC (No Connection).
Instructions
v Ensure correct wiring the terminals to avoid possible damage to the device; The mounting gap between two devices should be not less than 5mm. |
v In magnetic fields, the power lines should be in good conditions, and shieldings should be taken against the magnetic interference to the device. |
v Proper measures should be taken agaist the lighting if exposed into the outdoor environment, though this device has lightning protection ability. |
v Do not take the device apart. |
v Please keep the device cool and dry ,and store it away from humidity or high temperature over 85C° |
