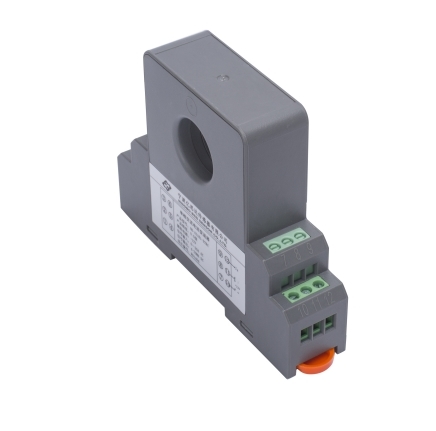

Single Phase DC Current Transducer NB-DI1B0-F9KD
DI1B0-F9KD is a DC Current Transducer that detects DC current in a wire, and generates a signal proportional to that current. The generated signal could be 5KHz or 10KHz . The generated signal can be then used to display the measured current in an ammeter, or can be stored for further analysis in a data acquisition system, or can be used for the purpose of control.
Specification
v Accuracy：Class 1.0
v Power supply：220Vac（Optional）
v Input range：DC 10～400A（Customizeable）
v Output: 5KHz,10Khz (Customizeable )
v Operating temperature：-10℃～+60℃
v Static power：≤0.3W
v Rated power：≤0.7W
v Load of isolation Voltage：DC 2500V
v Thermal drift：≤500PPm/℃
v Lightning surge：power supply end 2000V,output end 10000V , input end 500V
v Case style：K
v Case material：ABS (flame retardant)
v Mounting: 35mm DIN Rail

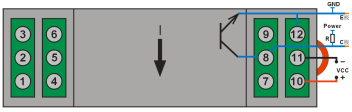

Wiring diagram
Current Hole-thru Input: Terminals 8 and 12are for output; Terminal 8 to wire thepositive end of output, Terminal 12 to wirethe negative end of the output; Terminals 10 and 11are for power supply.
Instruction
v Ensure correct wiring the terminals to avoid possible damage to the device; The mounting gap between two devices should be not less than 5mm. |
v In magnetic fields, the power lines should be in good conditions, and shieldings should be taken against the magnetic interference to the device. |
v Proper measures should be taken agaist the lighting if exposed into the outdoor environment, though this device has lightning protection ability. |
v Do not take the device apart. |
v Please keep the device cool and dry ,and store it away from humidity or high temperature. |
